Technocranes

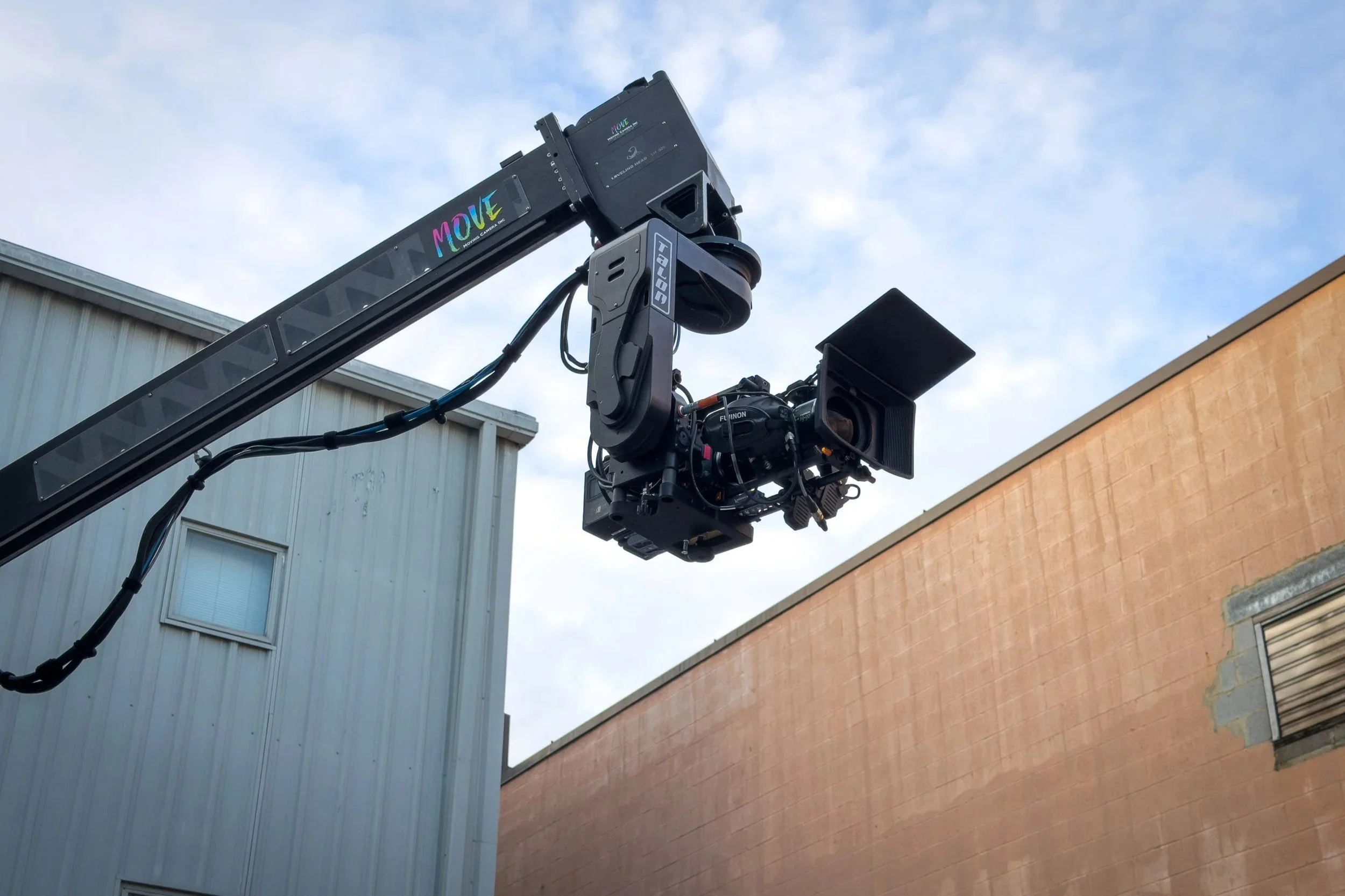

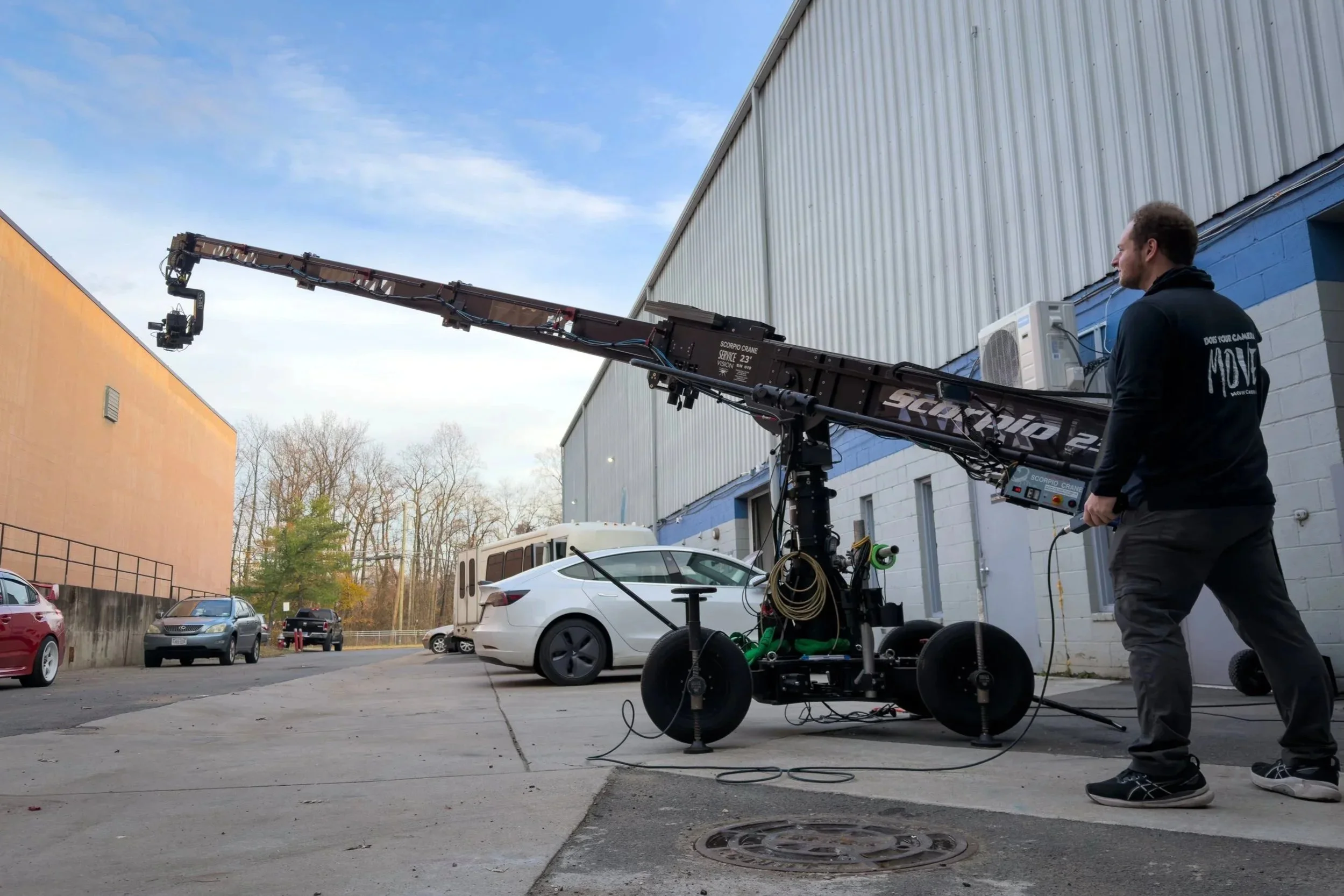

Scorpio 23

Moving Camera Inc is DC’s only local provider of telescoping camera cranes. Our Scorpio 23 telescopic camera crane provides rock solid movement to camera packages over 150lbs. Industry leading planing and motion generation features ensure your shots have sub millimeter precision.

Specs

  • Maximum length: 23'

  • Minimum length: 5'

  • Back length of the arm: 6'

  • Telescopic range: 18'

  • Max. Optical axis height: 22’

  • Telescopic column maximum extension: 1'

  • Loading capacity in under-slung position: 154lbs

  • Loading capacity in over-slung position: 99lbs

  • Required Power: 220V/16A - 110V/16A

  • Output Power for the Remote Head: 30V/ 20A

  • Output Power for the monitor: 12V/ 3A
